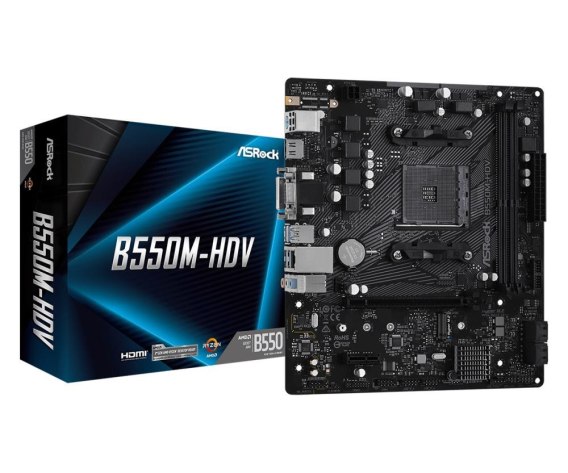

MB AMD B550 SAM4 MATX/B550M-HDV ASROCK

Symbol: B550M-HDV
Brak towaru

0
Wpisz swój e-mail
Opinie
Wysyłka w ciągu 24 godziny
Cena przesyłki 10.85
Paczkomaty InPost 10.85
DPD dostawa do Punktów Pickup 10.85
Kurier InPost/DPD 13.85
Poczta Polska (Pobranie) 34.99
Kurier InPost/DPD (Pobranie) 34.99
Dostępność 0 szt.
EAN 4710483931635

6 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Premium 50A Power Choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

Hyper M.2 (PCIe Gen4 x4)
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
  • 6 Power Phase Design
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Gigabit LAN
Chipset:
AMD B550
Manufacturer:
ASROCK
Category Code:
MBA
CnCode:
84733020
Unit Box Height:
0.21
Unit Box Length:
0.06
Unit Box Width:
0.27
USB 3.2:
4, Yes
M.2:
1
Form Factor:
Micro-ATX
15pin D-sub:
1
RAID:
SATA 0, 1, 10
PCI-Express 4.0 16x:
1
Description:

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
  • 6 Power Phase Design
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Gigabit LAN

Vendor Homepage:
www.asrock.com/mb/AMD/B550M-HDV/index.asp
USB 2.0:
2, Yes
Included Accessories:
- Quick Installation Guide, Support CD, I/O Shield; - 2 x SATA Data Cables; - 1 x Screw for M.2 Socket
HDMI:
1
Audio port:
3
RJ45:
1
Socket:
SAM4
Frequency speed:
2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733 MHz
Integrated LAN:
Gigabit
Integrated video:
Depending on CPU
Memory slots:
2
Memory type:
DDR4
SATA 3.0:
Yes
DVI-D:
1
Integrated audio:
Realtek ALC887
PCI-Express 3.0 1x:
1
PS/2:
1
Serial:
Yes
Product Net Weight:
0.8 kg
Unit Calculated Volume:
0.004045 cubm
Unit Calculated Weight:
0.92 kg
Units per Shipping Box:
20
