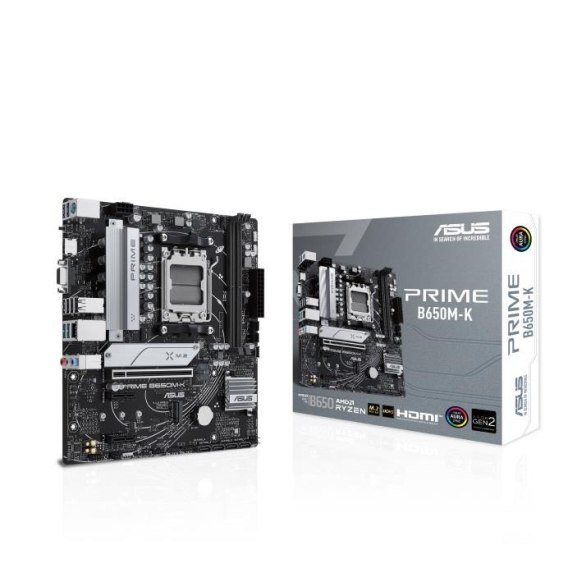

MB AMD B650 SAM5 MATX/PRIME B650M-K ASUS

Symbol: PRIMEB650M-K
Brak towaru

802.39
Wpisz swój e-mail
Opinie
Wysyłka w ciągu 24 godziny
Cena przesyłki 0
Poczta Polska (Pobranie) 0
Kurier InPost/DPD (Pobranie) 0
Paczkomaty InPost 0
DPD dostawa do Punktów Pickup 0
Kurier InPost/DPD 0
Dostępność 0 szt.
EAN 4711387236628

B650M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

COOLING
PRIME B650 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad
VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design
Prime B650 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS.

Multiple Temperature Sources
Each header can dynamically reference four thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

DDR5 Performance Enhancement
Comprehensive memory tuning options are the cornerstone of PRIME motherboards. With the PRIME B650M-A AX, you can extract all of the potential out of your DDR5 modules, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

For entry-level modules without EXPO™ memory support, we've got you covered. Click here to learn more about AEMP. arrow.
For those who want to fly past stock DDR5 speeds, the PRIME B650M-A AX is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via the extensive array of settings in the UEFI.

Outstanding Audio
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.

THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and PRIME B650M-A AX to experience advanced performance. With up to 16 "Zen 4" cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1

You'll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2

  • AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors
  • Ultrafast Connectivity: M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C®
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Przeznaczenie:
PC
Mikrofon:
Tak
Ilość w opakowaniu:
1
Procesor:
AMD Ryzen 7000 Series
Manufacturer:
ASUS
Category Code:
MBA
CnCode:
84733020
Jednostkowa waga brutto:
1.07 kg
Objętność brutto:
0.00351 cubm
Unit Box Height:
0.05
Unit Box Length:
0.27
Unit Box Width:
0.26
DDR3 1600/1333/1066/800:
PRIME B650M-K
Szerokość produktu:
244 mm
Wi-Fi:
Nie
Głębokość produktu:
221 mm
Description:

B650M-K
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650M-K provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexi

Vendor Homepage:
https://www.asus.com/motherboards-components/motherboards/prime/prime-b650m-k/
Summary:
ASUS PRIME B650M-K. Producent procesora: AMD, Gniazdo procesora: Gniazdo AM5, Procesor: AMD Ryzen 7000 Series. Obsługiwane rodzaje pamięci: DDR5-SDRAM, Maksymalna pojemność pamięci: 96 GB, Typ slotów pamięci: DIMM. Wspierane interfejsy dysków twardych: M.2, SATA III, Obsługiwane rodzaje dysków: HDD & SSD, Poziomy raid: 0, 1, 10. Rodzaj interfejsu sieci Ethernet: 2.5 Gigabit Ethernet. Przeznaczenie: PC, Rodzaj płyty: micro ATX, Rodzina płyt z chipsetami: AMD (2)
Głębokość opakowania:
270 mm
Szerokość opakowania:
260 mm
Waga wraz z opakowaniem:
1070 g
Wysokość opakowania:
51.5 mm
Przewody:
SATA
Złącze zasilacza EPS (8-pin):
Tak
Przewodowa sieć LAN:
Tak
Liczba portów USB 2.0:
4
Obsługiwane systemy operacyjne Windows:
Windows 10 x64/Windows 11
Obsługa kanałów pamięci:
Dwukanałowy
Ilość portów USB 3.2 Gen 1 (3.1 Gen 1) Typu-A:
2
Liczba obsługiwanych HDD:
4
Kanały wyjścia audio:
7.1 kan.
Rodzaj płyty:
micro ATX
Rodzina płyt z chipsetami:
AMD
Układ płyty głównej:
AMD B650
Gniazdo procesora:
Gniazdo AM5
Producent procesora:
AMD
Kompatybilność ECC:
ECC lub Non-ECC
Liczba gniazd pamięci:
2
Maksymalna pojemność pamięci:
96 GB
Obsługiwane prędkości zegara pamięci:
4800/5000/5200/5400/5600/5800/6000/6200/6400 MHz
Obsługiwane rodzaje pamięci:
DDR5-SDRAM
Pamięć niebuforowana:
Tak
Typ slotów pamięci:
DIMM
Ilość obsługiwanych rozmiarów dysków pamięci:
6
Obsługiwane rodzaje dysków:
HDD & SSD
Wspierane interfejsy dysków twardych:
M.2,SATA III
Gniazdo wentylatora procesora:
Tak
Gniazdo zasilania ATX (24-pin):
Tak
Ilość gniazd USB 2.0:
2
Ilość gniazd w podstawie wentylatora:
2
Ilość złączy SATA III:
4
Łącza USB 3.2 Gen 1 (3.1 Gen 1):
2
LED RGB:
Tak
Złącze audio na przednim panelu:
Tak
Złącze zasilania 12V:
Tak
Ilość portów Ethernet LAN (RJ-45):
1
Ilość portów HDMI:
1
Liczba portów PS/2:
1
Rodzaj interfejsu sieci Ethernet:
2.5 Gigabit Ethernet
Rozmiar pamięci BIOS:
256 Mbit
Typ BIOS:
UEFI AMI
Liczba portów VGA (D-Sub):
1
Obsługiwane gniazda procesora:
Gniazdo AM5
Obsługiwana prędkość zegara pamięci (maks.):
6400 MHz
Obsługa przetwarzania równoległego:
Nieobsługiwany
Złącze TPM:
Tak
Liczba gniazd M.2 (M):
2
Poziomy raid:
0/1/10
Usługa RAID:
Tak
Ilość portów USB 3.2 Gen 2 (3.1 Gen 2) Typu-A:
2
Wyjścia słuchawkowe:
1
Wejście liniowe:
Tak
Gniazda PCI Express x16 (Gen 4.x):
2
Ilość gniazd COM:
1
Gniazda PCI Express x1 (Gen 4.x):
2
Gniazdo S/PDIF:
Tak
Złącze audio:
Tak
